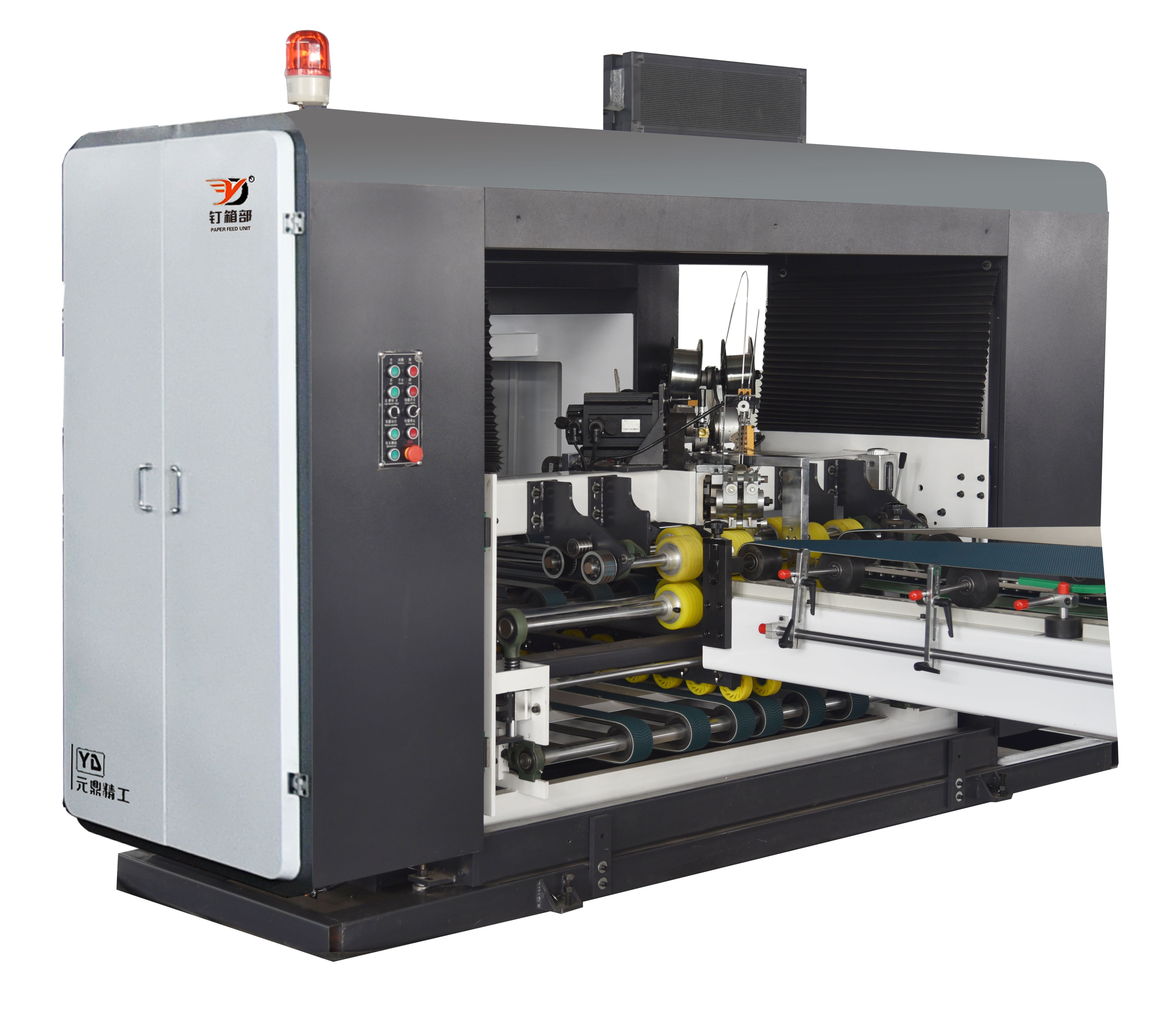

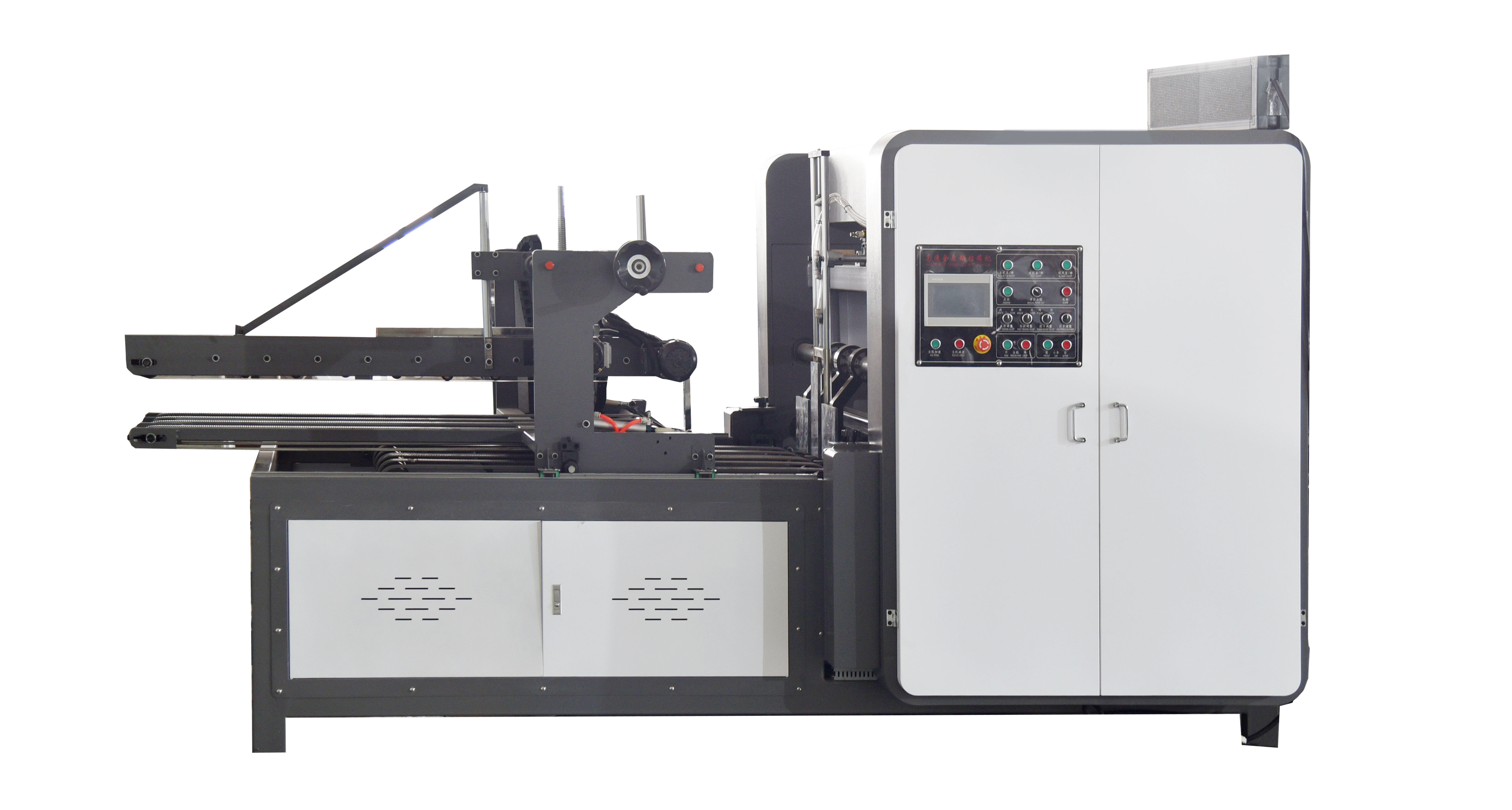

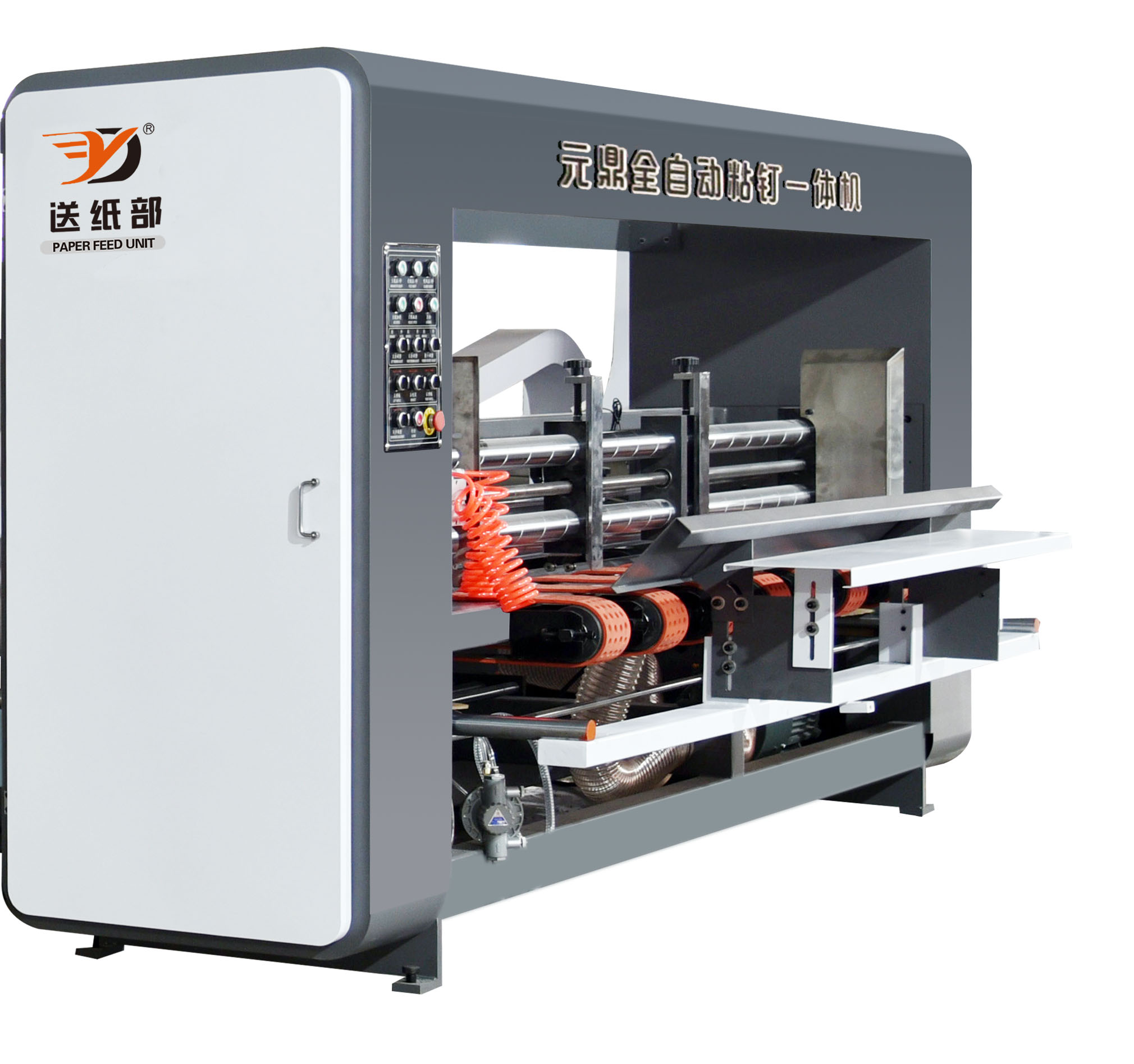

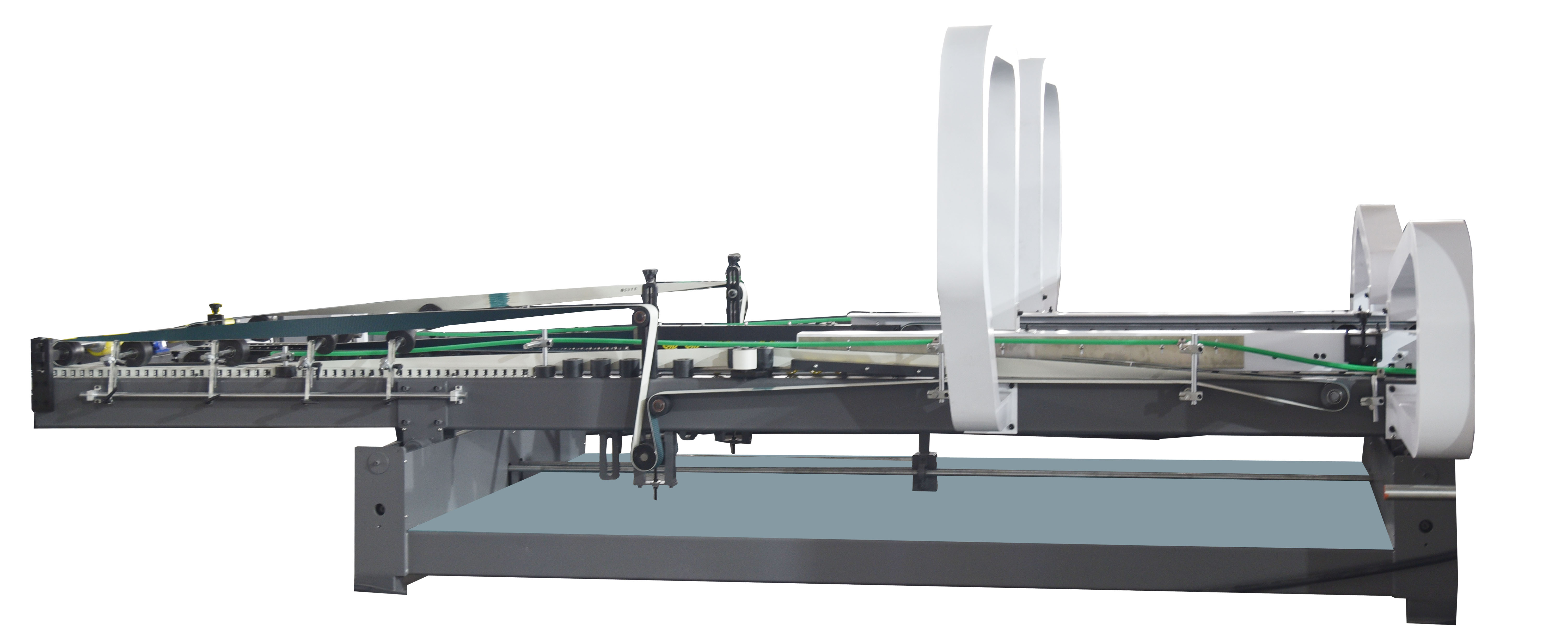

1. It is composed of four parts: the paper supply part, the glue coating and folding part the nailing and sticking box pressing part, and the counting and accumulation part.
2. Digital display speed regulation, microcomputer amplitude modulation, with simple fast, reliable and accurate control mode.
3. Automatic paper supply, automatic gluing and folding, automatic counting, automatic stacking output.
4. The average adhesive box speed is 150 pieces/min, the maximum speed is 220 pieces/min, and the maximum speed of nail box is 60 pieces/min. High efficiency, energy conservation and environmental protection is our supreme pursuit.
5. The whole machine is designed and produced according to The European standard, in line with the concept of safe and reliable work, convenient operation and maintenance
6. Using color touch man-machine interface and Panasonic master PLC control, easy to operate, strong humanization, touch man-machine interface and master PLC are reserved with program upgrade interface, convenient for equipment upgrade in the future.
7. The main power motor of the whole machine is variable frequency speed regulation, stable speed, environmental protection and energy saving (about 30% electricity saving), and the motor is fully protected (when the voltage is too high or too low, when the motor is to hot or too current.The frequency converter will automatically alarm and stop operation, and corresponding alarm code will be displayed.
8. All contactor used in the control motor of the whole machine are Siemens AC conactor, and thermal overload relay is installed to protect the motor when the motor is overloaded.
9. The wires at the connection points of all parts of the machine are connected by aviation plug-ins, which is convenient for disassembly and maintenance.
10. The front and rear of the machine are equipped with operation buttons, the main functions of which can be operated in the front and the back of the machine. The operation button panel is made of stainless steel, which is beautiful and elegant. The panel USES graphics and text to illustrate the button's functions at the same time, easy to understand.
