QZD-2600 A Full Automatic High Speed Nail Glue Machine

  • Our Mail : wendy@hbydpack.com
  • Mobile phone: +86 18333737577
  • Office Address: Dongguang Economic Development Zone, Dongguang County, Cangzhou City, Hebei Province, China

Short Description:

1 .To adapt to the corrugated A,B,C,AB,stare blankly,three,five layers of cardboard.

2.Reduce human dependence,replacing manual paste box,nail box operation.

3.Uniform coating without glue,easy to dry and clean.

4.Nailing effect better,nail is apart from the more accurate,beautiful appearance.

5.Paste good carton with sticky mouth solid,smooth,clean,etc

6.Stitching pitch range:20-500mm.

7.Speed:1050 nail/min.

8.Automatic feeding and folding,regulating,stitching or gluing,counting and stacking,output works.

9.Servo control of regulating and stitching.

10.Stitching range: 45degree.

11.Adjustable signal or double stitch,in compliant with international standard 17 or 18 size nail.

12.Choose and employ persons,less speed,2 people on paper,2 people banding,2 people back and forth More than 8 hours,easily ten copies.

13.Suitable for export packaging,green packaging,such as beverage containers,beer case,high grade of carton packing boxes of instant noodles and ceramic tile.

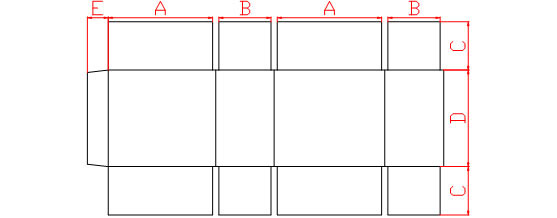

Product drawing:

Product parameter:

Model QZD-2600 A
Max Size (A+B)X2 2600
Min Size(A+B)X2 880
Max Size(C+D+C) 1200
Min Size(C+D+C) 350
Min rocker cover C 25
Max rocker cover C 450
Max width B 520
Min width B 200
Max length A 700
Min length A 250
Max high D 650
Min high D 200
Motor Power(Kw) 35
Machine length 16000
Machine width 4450
Machine weight(T) 23
Machine speed(nail/min) 900
Number of nails 1-99
Nail distance 30-99
stitching speed 100 m/min
Gluing speed 150 m/min
